Mesh Partitioning
Contact Us for a fast quotation and design drawing
Why buy Mesh Partitioning from Partitions Direct Ltd?
- Delivered from stock in 2-3 working days
- Price promise guarantee
- Fast and free quotation with 3D design drawing
- Free nationwide mesh partition site survey
- Modular system so will suit any requirement
- Optional nationwide installation service
- Experienced friendly staff
Our mesh partitioning system is modular and fully adjustable on site so will therefore cater for even the most obscure requirements. Available heights are 2,200mm, 3,000mm then any multiple of 800mm or 2,200mm. We offer multiple mesh partitioning panel and door options which will suit all warehouse partitioning, basement/garage storage or server room requirements.

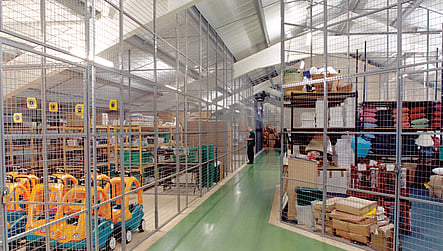

Mesh Partitioning Installation Examples
Mesh Partitioning Panel Options
Description:
Our ultra high security mesh panel. The ultimate in heavy duty mesh partition security
Our ultra high security mesh panel. The ultimate in heavy duty mesh partition security
Specification:
Frame: 30x20mm (box)
Wire: 5mm & 5mm
Mesh size: 50x50mm
Frame: 30x20mm (box)
Wire: 5mm & 5mm
Mesh size: 50x50mm
Standard Panel Sizes:
Heights: 2,200 & 800mm
Widths: 200, 300, 700, 800, 1,000, 1,200 & 1,500mm
Heights: 2,200 & 800mm
Widths: 200, 300, 700, 800, 1,000, 1,200 & 1,500mm
Description:
Our heavy-duty high security mesh panel. Ideal for all high security applications
Specification:
Frame: 30x20mm (box)
Wire: 3mm & 3.75mm
Mesh size: 50x50mm
Frame: 30x20mm (box)
Wire: 3mm & 3.75mm
Mesh size: 50x50mm
Standard Panel Sizes:
Heights: 2,200 & 800mm
Widths: 200, 300, 500, 700, 800, 1,000, 1,200 & 1,500mm
Heights: 2,200 & 800mm
Widths: 200, 300, 500, 700, 800, 1,000, 1,200 & 1,500mm
Description:
Our regular weight mesh panel. Better suited to personnel access restriction
Specification:
Frame: 19x19mm (box)
Wire: 2.5mm x 2.5mm
Mesh size: 50x50mm
Frame: 19x19mm (box)
Wire: 2.5mm x 2.5mm
Mesh size: 50x50mm
Standard Panel Sizes:
Heights: 2,200 & 800mm
Widths: 200, 300, 500, 700, 800, 1,000, 1,200, 1,500mm
Heights: 2,200 & 800mm
Widths: 200, 300, 500, 700, 800, 1,000, 1,200, 1,500mm
Description:
Smaller 25mm mesh aperture for securing aerosol or high value items
Smaller 25mm mesh aperture for securing aerosol or high value items
Specification:
Frame: 19x19mm (box)
Wire: 2.5mm x 2.5mm
Mesh size: 25x25mm
Frame: 19x19mm (box)
Wire: 2.5mm x 2.5mm
Mesh size: 25x25mm
Standard Panel Sizes:
Heights: 2,200 & 1,100mm
Widths: 700, 1,200 & 1,500 mm
Heights: 2,200 & 1,100mm
Widths: 700, 1,200 & 1,500 mm
Description:
Solid panel to restrict visibility. Can be used used alongside any of our mesh panels
Solid panel to restrict visibility. Can be used used alongside any of our mesh panels
Specification:
Frame: 19x19mm (box)
Thickness: 0.7mm
Frame: 19x19mm (box)
Thickness: 0.7mm
Standard Panel Sizes:
Heights: 2,200mm
Widths: 200, 300, 700, 800, 1,000 & 1,200mm
Heights: 2,200mm
Widths: 200, 300, 700, 800, 1,000 & 1,200mm
Description:
Bespoke mesh partitioning system manufactured to your exact requirement
Bespoke mesh partitioning system manufactured to your exact requirement
Specification:
Frame: 32x32mm (angled)
Wire: 3.0mm x 3.0mm
Mesh size: 50x50mm
Frame: 32x32mm (angled)
Wire: 3.0mm x 3.0mm
Mesh size: 50x50mm
Standard Panel Sizes:
Heights: Bespoke
Widths: Bespoke
Heights: Bespoke
Widths: Bespoke
Mesh Partitioning Door Options
- Hinged Single Door:
1,000 or 1,200mm width - Hinged Double Door:
2,000 or 2,400mm width - Sliding Single Door:
900, 1,100, 1,900 or 2,900mm width - Sliding Double Door:
1,900 or 2,300mm width - Height: 2,200 or 3,000mm
Mesh Partitioning Lock Options
- Padlock Hasps
- Euro Cylinder Lock
- ASSA Cylinder Lock
- Push Pad/Bar Lock
- Digi Lock
- Electric Strike
- Break Glass Bolt
Mesh Partitioning Support Posts
Our selection of full height mesh partitioning support posts offer easy and secure installation and in most cases require no bracing when partition height is 3,000mm or below
Example Design Drawings (click to zoom)
Call us on freephone 0800 788 0770 or email us for your fast, free mesh partitioning quotation with 3D design drawing
